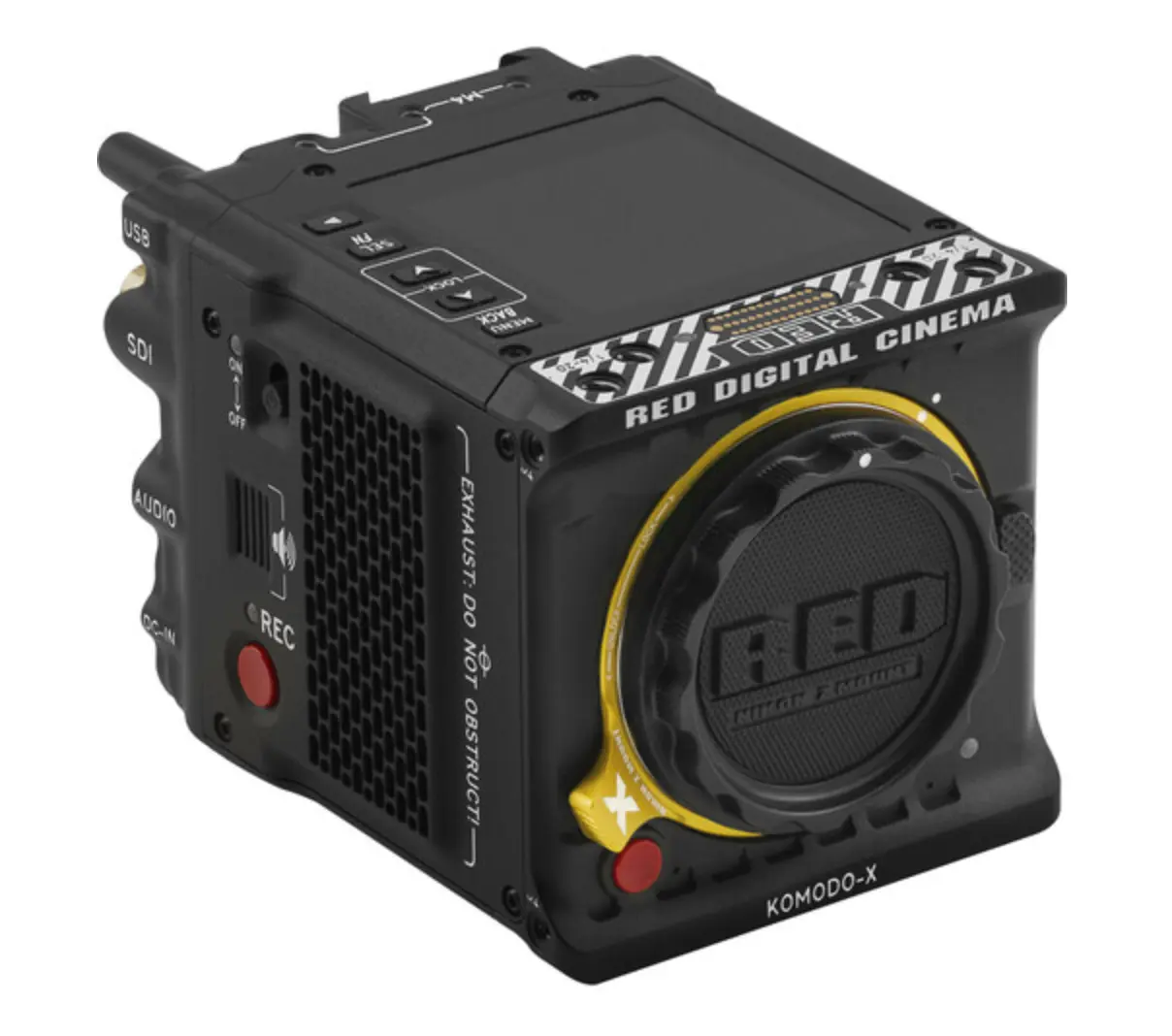

KOMODO-X^® is the next evolution in the KOMODO family, multiplying the frame rates, dynamic range, and usability of the original KOMODO to break new grounds. Now supercharged by the Nikon Z mount.

NOW WITH NIKON Z MOUNT

The KOMODO-X Z Mount, part of the new Z CINEMA Series, now features a native locking Nikon Z mount, introducing Nikon’s latest optical innovations into the cinema market. Close coordination between Nikon and RED brings Z lenses into the cinema style shooting experience, with advanced features such as smooth iris control, customizable lens response, and adjustable auto focus speeds. Given the shallow flange depth, the Nikon Z mount is compatible with even more lens systems using third-party adapters.

NEXT GENERATION KOMODO^® SENSOR

KOMODO-X features the same sized 6K S35 Global Shutter sensor as the KOMODO, but with a ground up redesign and key architecture improvements.

Improved detail and color in shadows, paired with double the frame rates at 6K 80P and 4K 120P makes KOMODO-X an even more powerful tool for creatives.

ENHANCED BODY AND I/O

With key improvements for professional workflows, the KOMODO-X now shares many features with the DSMC3 line while still maintaining the impressively small KOMODO form factor. An integrated micro V-Lock allows for direct attachment of professional micro V-Lock batteries without the need for adapters and is also compatible with the RED Pro I/O Module to provide auxiliary power and compatibility with full sized V-Lock and Gold Mount batteries.

A reinforced Nikon Z lens mount with locking mechanism maintains the flexibility of toolless switching between multiple lens mount types, while providing the stability and rigidity professionals need. KOMODO-X is also fully compatible with /i PL lenses using the RED Z to PL Adapter.

12G SDI, full sized DC-IN, USB Type-C, and a phantom powered locking audio connector further enables KOMODO-X to seamlessly integrate into any professional workflow. KOMODO-X is compatible with DSMC3^™ RED^® 5-Pin to Single 3.5mm Adapter to support existing KOMODO microphones, or the DSMC3^™ RED^® 5-Pin to Dual XLR Adapter for general purpose XLR microphones.

An integrated 2.9” LCD allows for simplified control and image preview in compact setups. For more precise monitoring, KOMODO-X supports the e DSMC3^™ RED^® Touch 7.0" LCD which provides a daylight viewable, high-resolution, camera top monitor and control solution without the mess of cables.

IP CONNECTED

KOMODO-X is a powerful platform for any IP based workflow, from Virtual Production to Live Broadcast. With integrated USB Type-C connection and built-in Wi-Fi, remotely control the camera using RED Control or RED Control Pro, as well as IP media offloading using FTPS or in-camera Cloud Uploading functionality (Frame.io and S3). In addition, KOMODO-X supports frame-accurate PTP synchronization or tri-level genlock sensor sync with the ability to offset on the fly to support multi-camera LED volume productions.

KOMODO-X also supports RED Connect, a licensed feature that allows for live broadcasting of 6K images directly from the camera over IP, expanding RED’s cinematic imagery into boundless new uses.

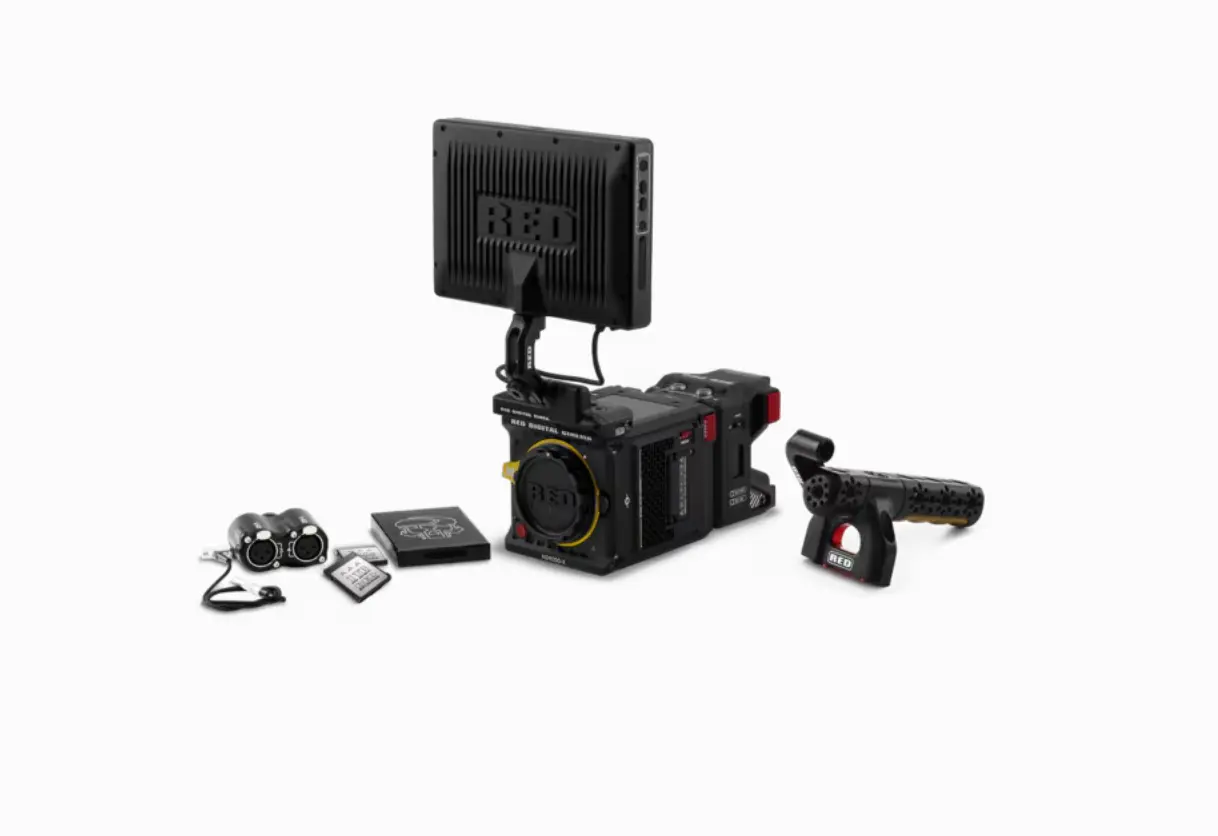

The KOMODO-X Production Pack is a comprehensive and robust pre-bundled setup that is perfect for professional work and studio set ups. It includes:

• 1x KOMODO-X Z Mount Camera
• 1x DSMC3 RED Touch 7” LCD
• 2x RED PRO CFexpress 1TB
• 1x RED CFexpress Card Reader
• 1x RED Pro V-Lock I/O Module
• 1x RED Compact Top Handle
• 1x DSMC3 RED 5-Pin to Dual XLR Adapter
